Wireless in-shoe plantar pressure insoles for clinics, teams and research

Foot pressure from every step.
In any shoe, anywhere.

128 plantar pressure sensors under each foot and a 6-axis IMU in each pod. Works with the STRIV app out of the box. The Research Kit adds raw data and a Python SDK.

Shop kits Talk to us

or email info@striv.run

Pressure sensors per pair: 256
Front-to-back CoP vs Footscan: r0.998
Battery per charge: ~10h

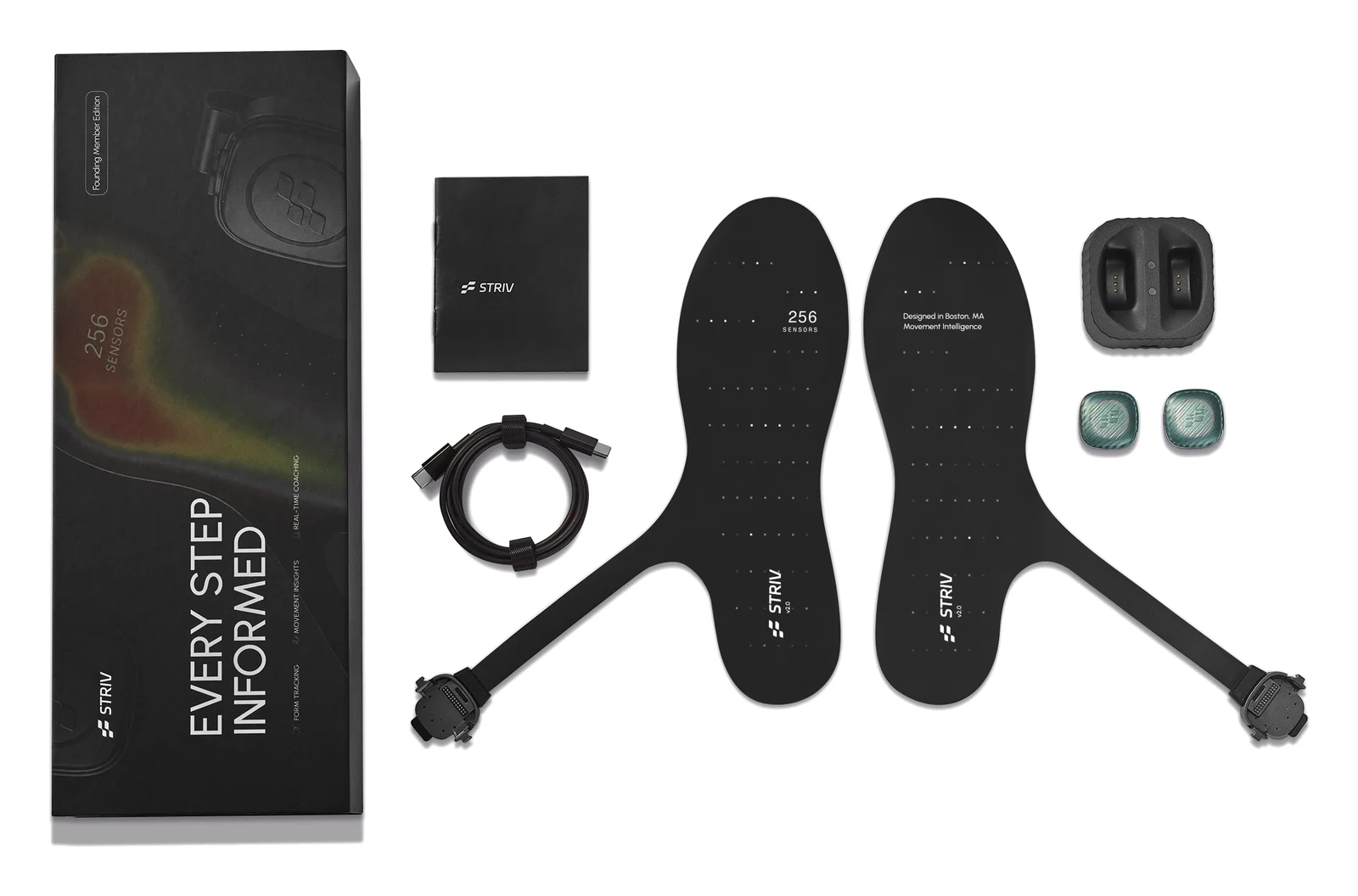

STRIV pressure-sensing insole kit with insoles, sensor pods, charging dock and cable

Used by teams at

STRIV vs Footscanr0.998Front-to-back center of pressure vs a Footscan lab plate.See the head-to-head

Specs

256 pressure sensors in every kit.

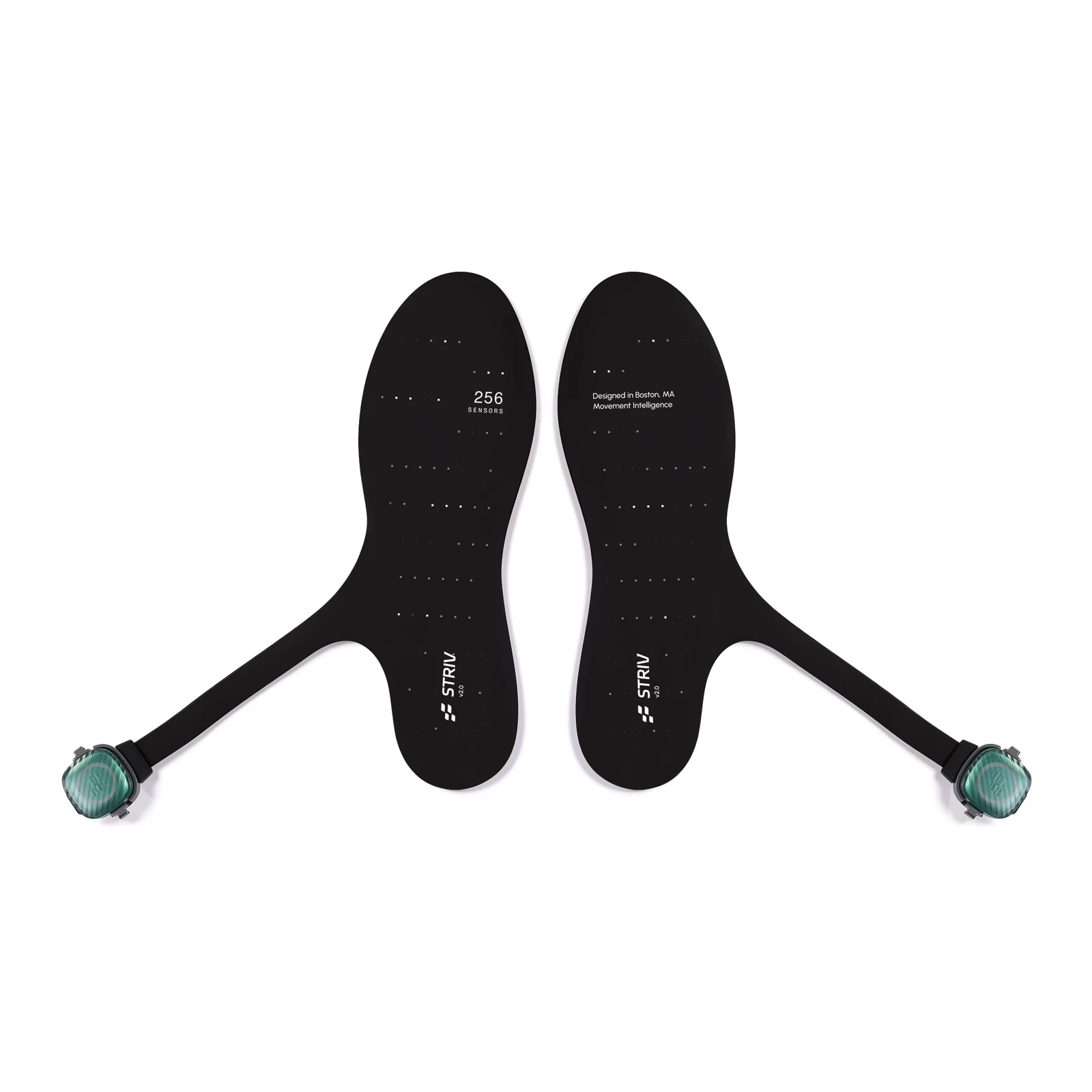

A pair of STRIV pressure-sensing insoles, 128 sensors each, with their sensor pods

Pressure sensors: 128 per insole, 256 per pair
Motion sensors: 6-axis IMU (accelerometer and gyroscope) in each pod
Coverage: Full foot, heel to toe
Insole sizes: S, M, L, XL. Fits on top of or under an orthotic
Thickness: About 2 mm insole; the pod at the heel is about 15 mm
Weight: About 10 g per pod and 40 g per insole, about 100 g for the full pair
Water resistance: IPX6
Battery: 1–2 weeks of normal training, about 10 hours of active running
Charging: Dock with USB-C cable
Indicators: Status light on each pod; battery and connection shown in the app
Connection: Bluetooth Low Energy
Onboard storage: Pods store sessions when no phone is connected and sync later (run metrics, not raw data)
App: STRIV app for iPhone (iOS 15+) and Android (7.0+)
Warranty: 1 year. Each sensor pair covered for its first 500 miles of wear and tear

Research Kit only

Raw data and a Python SDK.

Stream raw pressure and IMU data to your computer and run your own gait analysis in Python.

Get the Research Kit

Questions about the data or SDK? Ask us

Pressure: Raw 8-bit reading for every cell, 100 fps
Accelerometer: 400 Hz, ±16 g
Gyroscope: 200 Hz, ±2000 °/s
Units: Raw sensor readings only. No per-step force (GRF), contact time or calibrated kPa in the stream; run-level averages come in the app and run CSV
Timing: Device timestamp on every frame. Pods are time-synced over Bluetooth with repeated round-trip (RTT/2) offset estimates
Calibration: Sensors calibrate at the start of every session
Recording: Streams to a computer over Bluetooth, one CSV file per insole, up to about 10 hours per session
Range: One computer at a time, about 2–3 m from the pods in a lab
Software: Python SDK with example scripts for macOS, Windows and Linux

Kits and pricing

Pick your kit.

Sensor pods, insoles in all four sizes, a charging dock and the STRIV app in every kit. Free shipping worldwide. Ships from November 10.

Clinics & sports teams

Pro Kit

Fits anyone who walks in.

$1,800Free worldwide shipping. No recurring fees.

Buy Pro Kit

Need a quote or invoice?

1 pair of sensor pods
4 pairs of insoles: S, M, L, XL
Charging dock and cable
STRIV app
Team dashboardEarly access

Research

Research Kit

For teams building their own analysis.

$3,500Free worldwide shipping. No recurring fees.

Buy Research Kit

Need a quote or invoice?

Everything in the Pro Kit, plus:

Raw data from all 256 sensors and the IMU
Python SDK with example scripts

Buying several kits? Ask about bulk pricing. Running or sports project? You may qualify for a collaboration discount. Ask us or email info@striv.run

Sample data

The data you get.

Real rows from real runs, cut down to a few.

Pro Kit

Aggregated run metrics

Each run averaged into 200 time slices per foot. In the run CSV, the STRIV app and the Team dashboard.

6 of 200 rows, left foot, about 4 min into a 9 min run

Run CSV sample, left foot. Pick a column header to plot it across the whole run.
Timem:ss
3:58	3	275	499	2.39	155	6:09	−5.5
4:01	4	270	499	2.41	155	6:02	−6.4
4:04	3	274	498	2.35	155	6:04	−6.1
4:06	4	280	510	2.31	154	6:00	−6.6
4:09	4	278	498	2.33	152	6:26	−5.8
4:12	3	274	493	2.38	155	6:10	−5.1

Contact time ms, whole run

Pick a column to see it across the run.

Research Kit

Raw sensor stream

Every pressure cell and IMU sample, one row per frame. Right insole, one stance.

Right insole128 cells, 100 fps

Stance124 ms

Accelerometer400 Hz

Gyroscope200 Hz

Frame 12 of 24

	Pressure, raw 0 to 255																																																																Accelerometer, 4 per frame												Gyroscope, 2 per frame
dev_ts	p0	p1	p2	p3	p4	p5	p6	p7	p8	p9	p10	p11	p12	p13	p14	p15	p16	p17	p18	p19	p20	p21	p22	p23	p24	p25	p26	p27	p28	p29	p30	p31	p32	p33	p34	p35	p36	p37	p38	p39	p40	p41	p42	p43	p44	p45	p46	p47	p48	p49	p50	p51	p52	p53	p54	p55	p56	p57	p58	p59	p60	p61	p62	p63	p64	p65	p66	p67	p68	p69	p70	p71	p72	p73	p74	p75	p76	p77	p78	p79	p80	p81	p82	p83	p84	p85	p86	p87	p88	p89	p90	p91	p92	p93	p94	p95	p96	p97	p98	p99	p100	p101	p102	p103	p104	p105	p106	p107	p108	p109	p110	p111	p112	p113	p114	p115	p116	p117	p118	p119	p120	p121	p122	p123	p124	p125	p126	p127	ax0	ay0	az0	ax1	ay1	az1	ax2	ay2	az2	ax3	ay3	az3	gx0	gy0	gz0	gx1	gy1	gz1
101	63	163	161	152	148	163	148	163	148	166	189	166	144	166	171	147	68	182	191	178	171	185	179	183	161	187	223	196	165	189	194	166	69	183	196	179	174	182	173	181	167	198	239	203	176	198	200	172	68	184	197	192	175	189	173	182	159	185	248	212	183	214	214	179	67	182	195	188	176	193	173	183	157	175	232	210	194	212	234	195	68	175	183	177	169	186	168	186	152	171	236	204	179	198	208	213	61	162	162	155	144	166	148	168	138	161	210	179	157	179	174	158	54	148	135	135	126	144	136	148	127	160	188	156	136	161	151	137	−801	−2366	860	−1202	−1819	1468	−1681	−1441	1587	−1688	−1510	1333	2	1153	−646	−639	916	−785
113	47	139	151	139	137	159	152	166	157	170	195	171	153	176	186	159	49	151	175	160	153	179	181	187	169	194	230	202	175	198	208	182	50	153	178	161	157	178	178	186	176	204	248	211	187	209	215	191	50	154	181	172	159	186	181	188	168	193	255	220	197	227	231	204	49	153	178	170	160	187	181	189	166	185	245	219	210	227	255	220	50	147	170	161	154	181	175	192	161	180	250	212	193	214	228	242	45	138	154	142	132	163	153	171	145	170	220	186	168	189	186	176	40	128	132	127	118	143	145	156	135	167	198	163	145	169	164	152	−857	−2272	443	−723	−2407	83	−934	−2299	−268	−1318	−2139	−675	−392	1514	−526	−299	1677	−517
124	31	109	130	116	116	142	142	164	159	171	196	174	157	179	194	166	34	117	148	131	126	158	167	183	173	196	231	207	179	205	220	194	35	118	149	131	128	156	165	183	179	208	252	215	194	216	230	204	33	119	151	138	129	163	167	185	172	196	255	226	204	239	248	220	34	118	149	138	133	166	168	187	169	190	250	227	218	240	255	239	36	114	144	131	129	159	164	192	166	186	255	222	202	225	245	255	31	108	133	118	112	142	143	171	147	175	223	190	174	197	197	187	28	103	117	106	101	127	136	153	137	171	198	166	148	176	170	159	−1839	−2103	−1445	−1831	−2155	−1455	−1699	−2143	−1126	−1584	−2027	−581	−186	858	−758	89	203	−845
135	21	76	102	86	89	118	121	150	143	167	187	167	155	176	194	162	23	79	112	92	92	127	138	166	155	193	220	200	176	202	221	191	24	79	112	92	95	126	138	168	163	207	241	211	194	218	231	204	23	81	114	97	96	132	136	169	159	196	255	224	206	241	254	224	22	81	113	98	97	134	140	174	159	193	246	227	224	247	255	243	23	79	110	94	95	127	136	177	156	187	253	220	205	230	254	255	21	74	103	85	84	115	122	159	137	175	215	186	172	197	197	185	19	73	94	77	77	104	115	142	127	170	191	159	145	172	167	155	−1475	−1963	509	−1378	−2071	807	−1205	−2170	842	−1166	−2182	649	−375	−166	−961	−436	4	−937
147	14	46	64	49	57	85	87	113	111	139	162	151	140	164	180	146	14	47	67	50	57	89	97	125	120	163	196	184	164	191	210	181	15	47	66	50	58	89	97	125	127	177	211	195	183	209	220	194	14	48	67	51	59	93	97	125	125	167	226	204	191	232	241	213	14	48	68	52	59	95	101	133	128	167	224	216	218	246	255	242	14	47	67	51	59	92	99	137	127	163	232	210	199	230	251	255	13	45	64	47	54	82	89	124	114	153	197	174	164	191	190	178	12	44	60	45	51	75	83	112	105	151	174	148	137	165	156	143	−1677	−1908	64	−1863	−1770	−26	−1868	−1782	6	−1906	−2038	−5	−896	291	−1115	−1205	94	−1212
158	8	26	38	25	32	55	56	71	76	106	133	135	125	150	166	127	8	26	39	25	31	57	62	78	81	121	159	167	150	180	194	165	8	26	39	25	31	57	62	78	85	134	174	176	168	198	204	179	9	26	40	26	32	58	62	79	86	129	187	190	180	226	230	204	9	26	41	26	32	60	64	83	89	127	187	198	209	240	255	232	9	26	41	26	32	59	64	87	88	125	192	192	189	225	242	255	8	26	39	25	30	54	57	81	81	115	162	158	150	177	174	162	8	25	38	23	29	51	55	73	75	118	145	133	122	152	139	127	−1663	−2503	−323	−1526	−2684	−45	−2174	−2652	373	−2636	−2746	578	−971	−837	−1336	−717	−145	−1548

Raw readings as recorded: accelerometer 2048 per g, gyroscope 0.070°/s per unit.

Team dashboardEarly access

Everyone’s runs in one place.

Athletes and patients share from the STRIV app. Open any run for the full report.

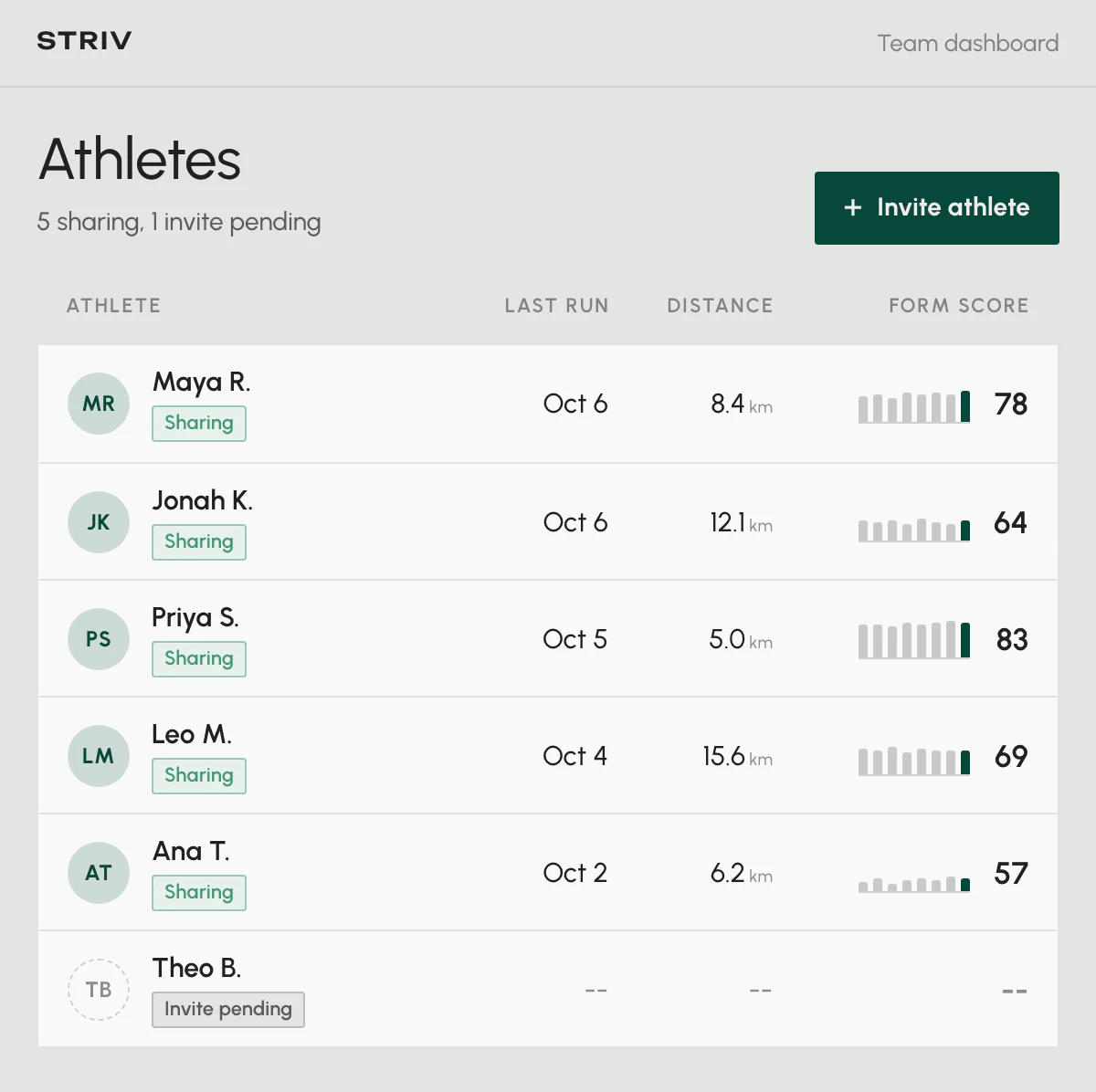

Team dashboard roster: six athletes with their last run date, distance and Form Score trend. Five are sharing and one invite is pending.

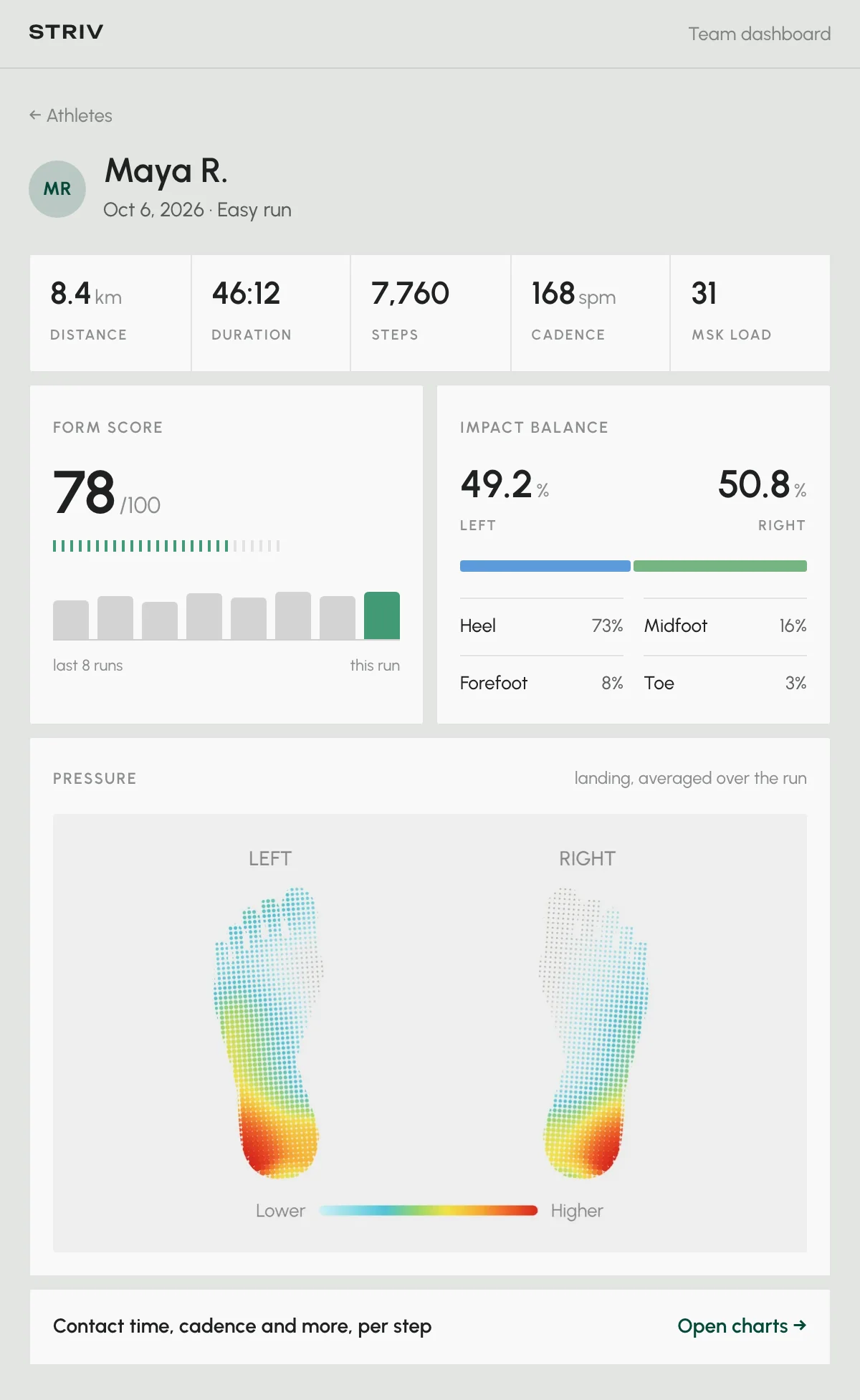

One athlete's latest run in the Team dashboard: distance, duration, steps, cadence, MSK load, Form Score with recent runs, impact balance, and the app's landing pressure map of the left and right foot.

Questions

Anything else? Ask us or email info@striv.run

Pro Kit or Research Kit?

Want ready-to-use metrics? Go with the Pro Kit: the app, a run CSV and the Team dashboard. Building your own analysis? The Research Kit adds the raw sensor data and a Python SDK.

Which sizes are in the box?

All four, so you’re covered from S to XL. Every kit has one pair of each size.

Size	US men	US women	EU
S	5 – 7	6 – 8.5	36 – 39
M	7.5 – 8.5	9 – 10	39.5 – 42
L	9 – 10.5	10.5 – 12	42.5 – 44.5
XL	11 – 12+	12.5 – 13.5+	45 – 47+

See the full size chart

Can I use it with orthotics?

Yes. Put the STRIV insole on top of or under the orthotic, whichever feels better.

Can several people use one kit?

Yes, one at a time. Just move the pods to the next person’s insoles. Want to record two people at once? Get two kits.

Does it work for walking or other activities?

Yes. The insoles record plantar pressure in any activity, including walking and carrying loads. The app’s metrics and coaching are built for running, so for other activities most teams use the Research Kit’s raw data.

Can we sync it with other lab equipment?

There’s no wired trigger. Every frame carries a device timestamp, and the pods sync their clocks over Bluetooth using repeated round-trip (RTT/2) estimates, so you can line the data up with your other recordings.

Can we clean the insoles between people?

Yes. The insoles can be cleaned and disinfected between users, and the pods are rated IPX6.

Has STRIV been validated?

Yes, against lab gold standards. See how we test it on our Validation page.

Is STRIV a medical device?

No. STRIV is a performance tool for understanding how people move. It isn’t for diagnosis or treatment, and it can’t be billed to insurance.

Is the Team dashboard HIPAA compliant?

No. The Team dashboard isn’t a medical record system and we don’t sign BAAs, so please keep patients’ medical records out of it. You know your practice best, so it’s your call whether it fits.

Can we return a kit?

Kits are final sale, but we’ve got you covered: if anything arrives damaged, incorrect or not working, we’ll replace it, and the 1-year warranty covers you after that. See the Return Policy.

Can we pay by invoice or purchase order?

Yes, happy to. Send us the kit and quantity and we’ll send you an invoice. Or email info@striv.run.
